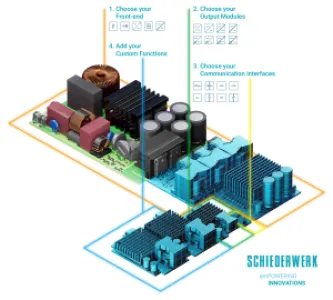

Using the innovative Power Supply Kit (PSK), SCHIEDERWERK designs and manufactures power supplies and switch-mode power supplies with custom-made outputs – fast, precise, and reliable. Our platform-based, modular approach accelerates your development, lowers costs, and mitigates project risks, all while maintaining the highest standards of quality and safety. It also offers maximum form factor flexibility to seamlessly support your design-in process.

Our platform integrates pre-engineered, EN 60601-certifiable standard modules with tailor-made circuit designs. This enables an efficient configuration of both AC/DC and complex switch-mode power supplies – delivering maximum design freedom and full regulatory compliance, perfectly suited for advanced medical equipment and power management systems in regulated industries.

Technical specifications for our medium-power Switch-Mode Power Supplies (depending on project):

• Output power: 300 – 3,600 W

• Output voltage: 0 – 60 V

• Output current: 0 – 40 A

Key Features

• Multiple Outputs

  If several different or separate output voltages are required in an application, integrating all voltage transformers in a single device is the more cost-effective alternative.

• Reinforced insulation

  To isolate the outputs from the mains and earth potential, we offer insulation systems with UL and IEC approval that meet the safety requirements for medical technology.

• Medical approval

  The requirements regarding EMC, mains behavior (hold time), leakage currents and insulation for certification to IEC/UL 60601 are met.

• For global use

  The particularly high efficiency of the front end (PFC) enables the power supply units to be used worldwide without any power restrictions (derating) and fulfills all country-specific requirements with regard to THD and EMC.

• Cost-effective Solution

  We achieve your cost targets by implementing only the circuit functions that you really need, by integrating all functions (multiple outputs, power management) without overhead and by consistently optimizing the components. For corresponding quantities, we offer solutions that cost less than standard.

• Many communication interfaces

  On request, we can integrate an interface for communication so that integration into the application’s power management system is possible (examples: CAN, PMBus, SMBus, RS485).

Power, where it`s needed most

The medical power supply and distribution system MPSD 60-40 DC has been specifically developed for demanding applications in medical environments. It ensures a safe, flexible, efficient, and uninterrupted power supply – precisely where it is needed most. Whether in ambulances, mobile intensive care units, or field hospitals, the system reliably powers ventilators, monitoring systems, infusion pumps, and other critical medical devices at various supply voltages – simultaneously and without interruption.

Key Features

• Multiple supply options on both AC (mains) and DC (e.g., solar panels) levels

• Battery support with charge and discharge functionality

• Multiple bidirectional low-voltage outputs up to 60 V DC, Software adjustable

• Total power output: 1.800 W

• Robust housing with airflow openings for system integration

• MODBUS or CAN software interface for communication and control

• Individual control of all interfaces (enable/disable, priority settings)

• Comprehensive monitoring of voltage, current, power, temperature, and error status

• Battery can be replaced during operation (Hot Swap)

• Intelligent Power Management

Technical Data

• AC Grid in: 100–230 V ± 10 %; 50/60 Hz; 1.800 W

• DC Bus in: Solar Panel or misc. up to 60 V / 40 A

• Power out: 4x up to 60 V / 40 A (total output power depending on input power)

• System efficiency (Battery to Power out): > 97 %

• System efficiency (Grid to Power out): > 94 %

• Communication interface out: MODBUS / CAN

• Isolation primary to secondary: 2 MOPP

• Isolation primary to PE: 1 MOPP

• Ambient temperature: -20°C to + 70°C (up to 50°C without derating)

• Dimensions of max. configuration: 16.4 x 13.6 x 10.4 inch

• Weight: < 40 lbs

• Electrical terminations: AC inlet socket for non-heating apparatus / Low voltage Phoenix Clamp LPT series

• Safety Standards: EN 62368-1 / IEC 60601

• EMC conformity: EN 60601-1 / EN 61000-3-2

High-Performance for Medical Applications

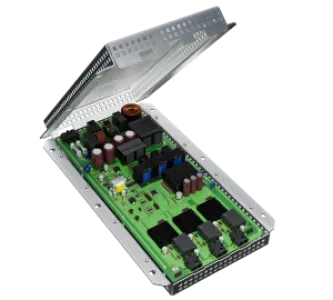

The MPS x3 medical switching power supply is a high-performance AC/DC solution designed for demanding medical applications requiring precision, reliability, and safety. With up to 1.8 kW of continuous output power, it ensures stable and efficient operation even in critical environments.

Engineered for use in medical imaging systems, dental equipment, and mobile healthcare devices, the MPS x3 delivers a consistent, low-noise power supply for sensitive and mission-critical systems. Its precise voltage regulation guarantees stable performance where power quality is essential.

Key Features

• High Continuous Power: Up to 1.8 kW of continuous output power for stable operating conditions

• Maximum Reliability: Designed for critical medical applications with high availability requirements

• Precise Voltage Regulation: Ensures a consistent power supply for sensitive systems

• Compact and Robust Design: Optimized for integration into medical devices and systems

• Future-Proof Technology: Scalable architecture for customized adaptations

• Maximum Patient Safety through Standards-Compliant Power Supply

• Optimized Design for Dental Treatment Units, X-ray Systems, and Mobile Operating Tables

Technical Data

• Maximum Continuous System Output Power: 1.8 kW

• Output Voltage: 12 – 55 V

• Input Voltage Range: 100–240 V ±10%

• Efficiency: > 94 %

• Isolation (Primary to Secondary): 2 MOPP

• Isolation (Primary to Protective Earth): 1 MOPP

• Frequency: 47–63 Hz

• Hold-up Time: > 16 ms

• Voltage Tolerance: 1 %

• Operating Temperature: -20 to 70°C (with derating)

• Operating Relative Humidity: 5 %–95 % (non-condensing)

• Dimensions (L × W × H): approx. 410 × 200 × 30 mm
